220 kVA Prime Output

The DCA220SSJU4F3 offers a prime rating of 176 kW (220 kVA) and a standby rating of 194 kW (242 kVA).

Our patented open delta generator winding provides precise voltage control, allowing superior motor starting capability. An electronic governor maintains frequency to ± 0.25% from no load to full load. Equipped with a Tier 4 certified John Deere diesel engine to easily meet the stringent EPA standards while providing profitable performance and reliability. It features an auto start stop that allows the generator to start from a remote location.

The unit features a powder-coated, weatherproof steel housing that allows a substantially low operating noise level of 74 dB(A). A comprehensive analog control panel provides instrumentation including AC ammeter, AC voltmeter, frequency meter, AC circuit breaker, engine gauges and much more.

Quick Links

Specification Highlights


Prime Rating — 176 kW (220 kVA)
Standby Rating — 194 kW (242 kVA)
Three-Phase, 50/60 Hz, 0.8 PF
± 0.25 Frequency Regulation
(No Load to Full Load)


John Deere / 6068HFG06
EPA Tier 4 Final Certified
Available with PowerBalance


74 dB(A) at 23 ft.
319 gal. (1,210 L) Fuel Tank Capacity
29.7 gal. (112.4 L) DEF Tank Capacity
TRLR220EV Trailer Available


Battery Charger
Trailer-mounted Package
Sub-Base Fuel Cells
Cam-Lok Quick Disconnectors
...And More!

Product Literature

125-600 kVA Spec Comparison Sheet
125-600 kVA Spec Comparison Sheet

Data Sheets

DCA220SSJU4F3 Data Sheet
Data Sheet

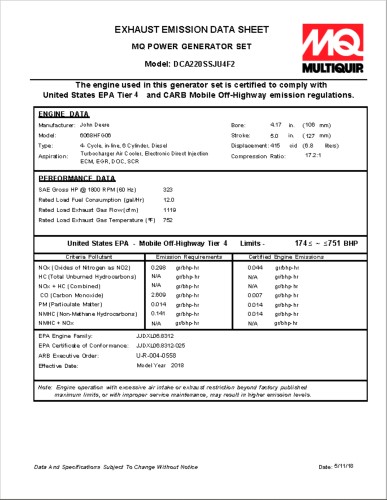

Emissions Data Sheet
Emissions Data Sheet

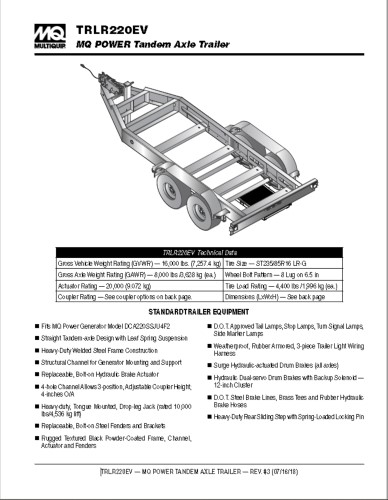

TRLR220EV Trailer Data Sheet
TRLR220EV Trailer Data Sheet
