DCA20SPXU4F20 kW Prime Rating

The DCA20SPXU4F is a 20 kW Single Phase generator with 1.0 power factor and 12/240 volt output.

Among the many features, it includes a sound attenuated, weatherproof steel housing with an easy to maintain design that offers direct access to all filters and drain extensions. An electronic governor control maintains steady state 60 Hz within 0.25% from no load to full load. .

It features an auto start stop that allows the generator to start from a remote location. The unit has an easy to read control panel that includes an ammeter, frequency meter, AC circuit breaker and other analog instrumentation.

Quick Links


Specification Highlights

Generator

Prime Rating — 20 kW
Standby Rating — 22 kW
Single Phase, 120/240 V
± 0.25 Frequency Regulation
(No Load to Full Load)

Engine

Isuzu 4L32T
Tier 4 Final

Enclosure

65 dB(A) at 23 ft.
26.5 gal (100 L) Fuel Tank Capacity
TRLR25US Trailer Available

Options

Battery Charger
Trailer-mounted Package
Emergency Stop Switch
Sub-Base Fuel Cells
Cam-Lok Quick Disconnectors
...And More!

Additional Photos

DCA20SPXU4F Trailer-Mounted (Front)
Trailer-Mounted (Front)
Trailer-Mounted (Rear)
Trailer-Mounted (Rear)
DCA20SPXU4F Trailer-Mounted (Doors Open)
Trailer-Mounted (Doors Open)
DCA20SPXU4F Interior (Left Side)
Interior (Left Side)

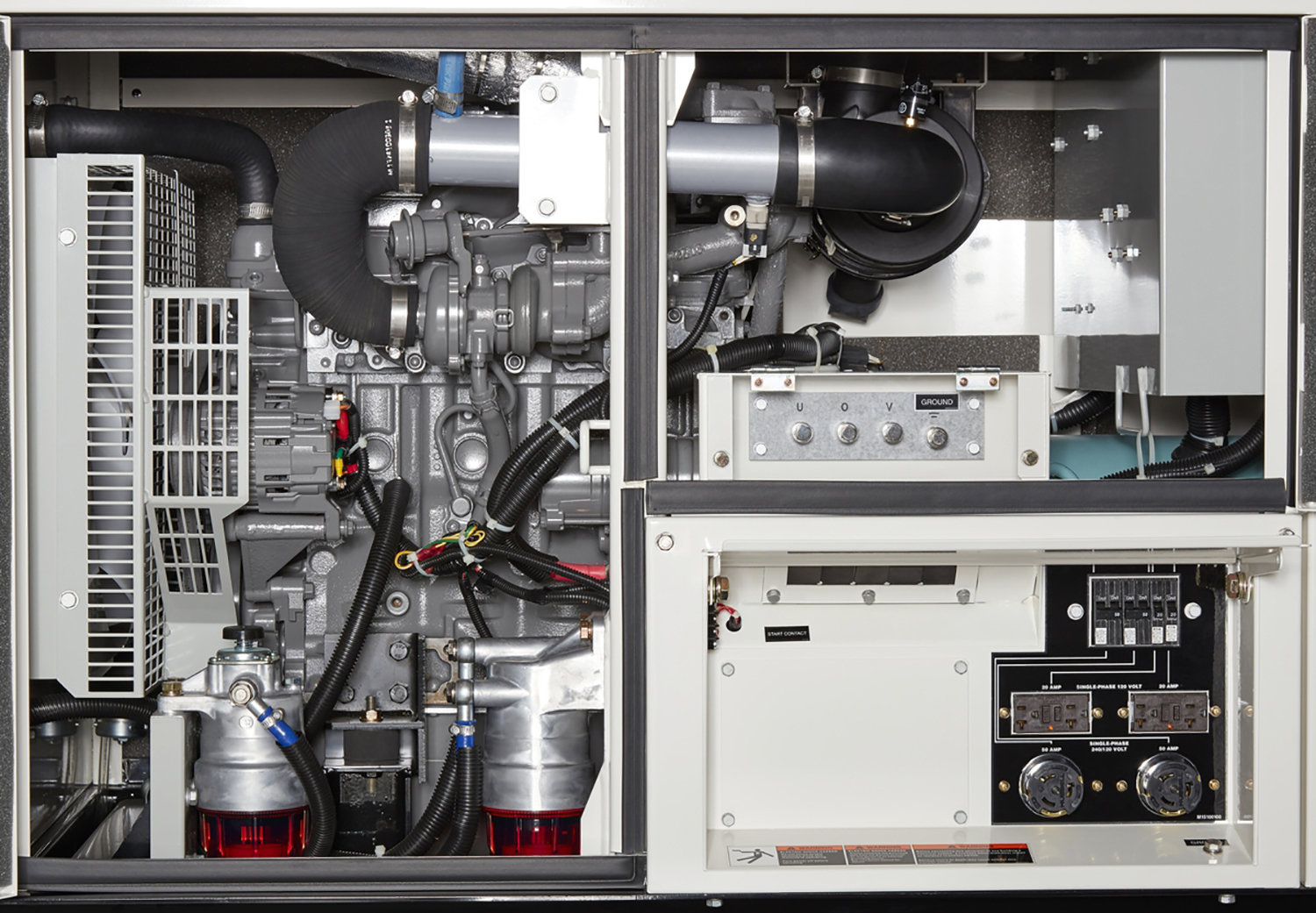

DCA20SPXU4F Interior (Right Side)
Interior (Right Side)
DCA20SPXU4F Control Panel
Control Panel

Product Literature

220-800 kVA Spec Comparison Sheet
6-36 kW Spec Comparison Sheet

Data Sheets

DCA20SPXU4F Data Sheet
Data Sheet
Emissions Data Sheet
Emissions Data Sheet
TRLR180XF Trailer Data Sheet
TRLR25US Trailer Data Sheet

Outline Drawings

DCA20SPXU4F Generator Outline
Generator Outline
TRLR25US Trailer Outline
TRLR25USE Trailer Outline
TRLR25US Trailer Outline
Generator Mounted on TRLR25US Trailer Outline
