SG600C3
600A @ 120/208 3-Phase

The technically-advanced, yet operator-friendly, SG600C3 studio generator is designed specifically for the entertainment industry to reduce noise and increase reliability.

The unit features a microprocessor-based digital controller providing a color graphic display and remote monitoring capability for a truly state-of-the-art control package. The updated controller can also remotely monitor and operate the generator through a simple wireless internet connection. A variable-speed hydraulic fan drive is used to allow the fan to spin slowly under smaller loads providing more efficient airflow while reducing noise. The Cummins™ engine is equipped with an isochronous electronic governor providing precise frequency control of &plusminus; 0.25 percent, as well as an all-aluminum housing to eliminate excess weight.

Quick Links


Specification Highlights

Generator

Prime Rating — 72 kW (90 kVA)
Marathon Alternator
Oversized Radiator & Multi-wing Fan for quiet operation
120/240 1-Phase: 400 Total Amps
120/208 3-Phase: 600 Total Amps
277/480 3-Phase: 261 Total Amps

Engine

Cummins Disel Engine
EPA Tier 3 Certified
Variable-Speed Hydraulic Fan

Enclosure

100 gal. (379 L) Fuel Tank Capacity
Sound-attenuated Aluminum Housing with rounded corners
Outlet Panel
  • 6 sets - Camlock receptacles
  • 2 sets - 100 amp BATES connectors
  • 2 sets - 15 amp Edison receptacles

Options

Parallel Operation Package
Exterior Lighting
Trailer Package
Custom Paint Colors
...and More!

Additional Photos

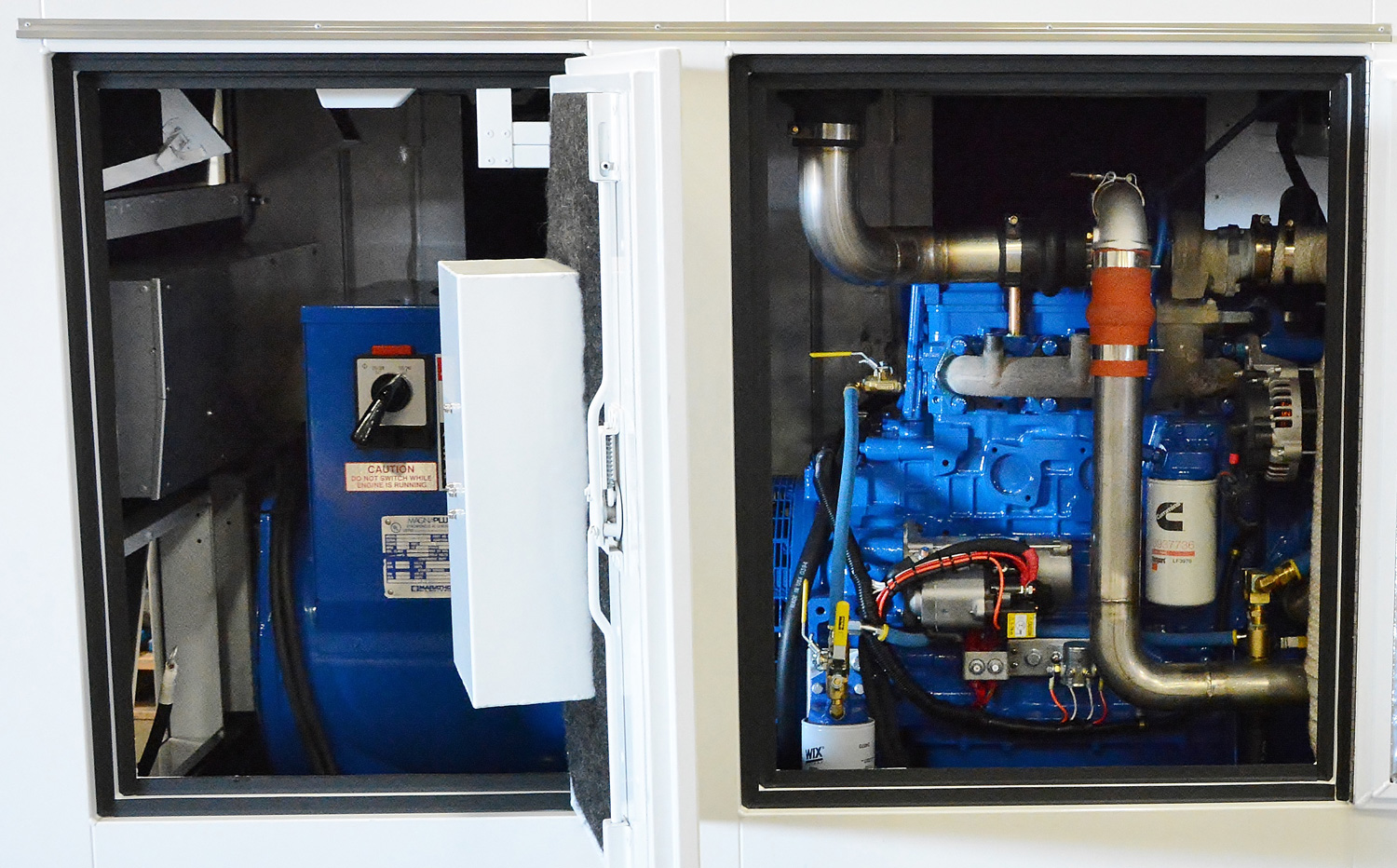

SG600C3 Interior (Left Side)
Interior (Left Side)

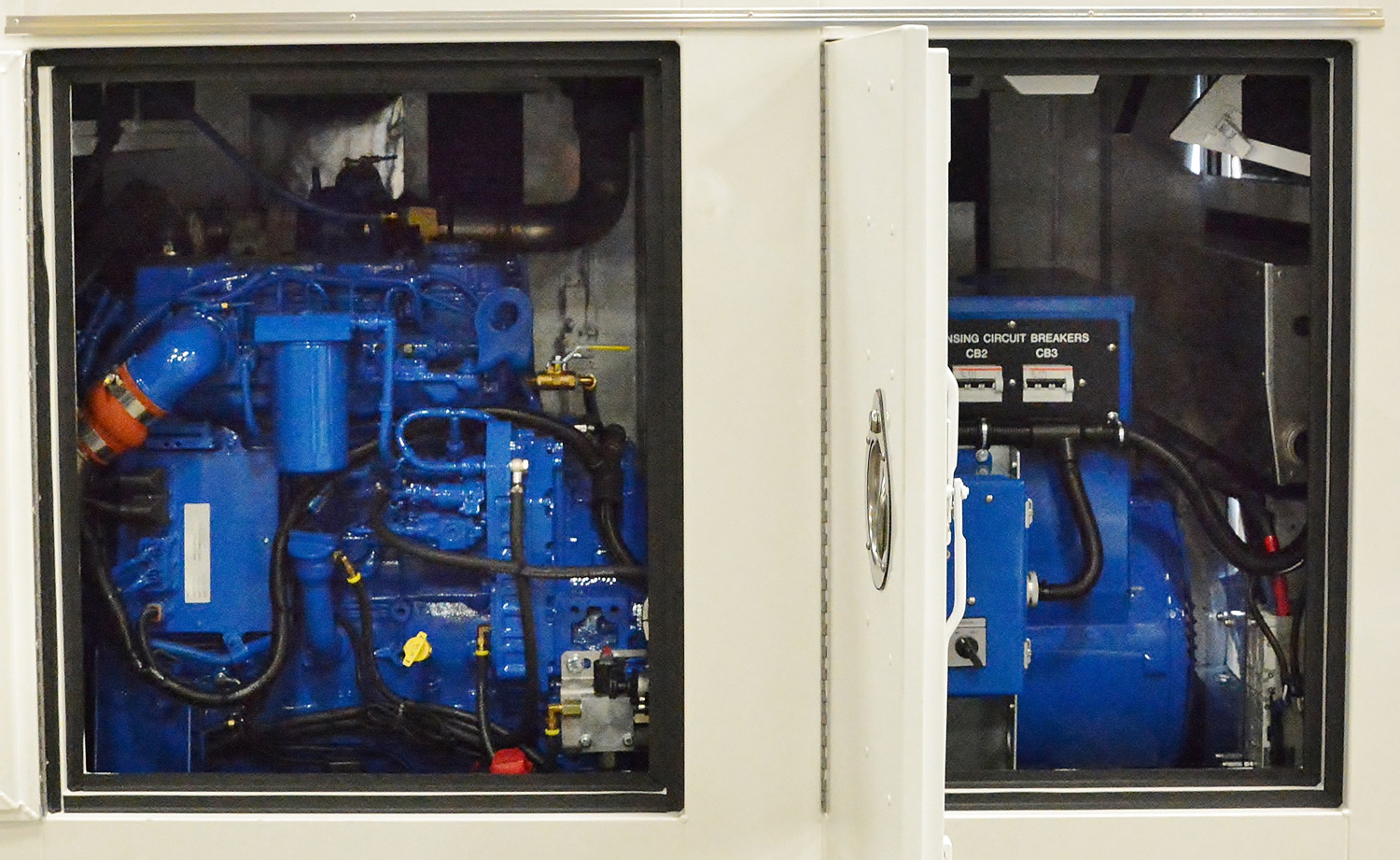

SG600C3 Interior (Right Side)
Interior (Right Side)

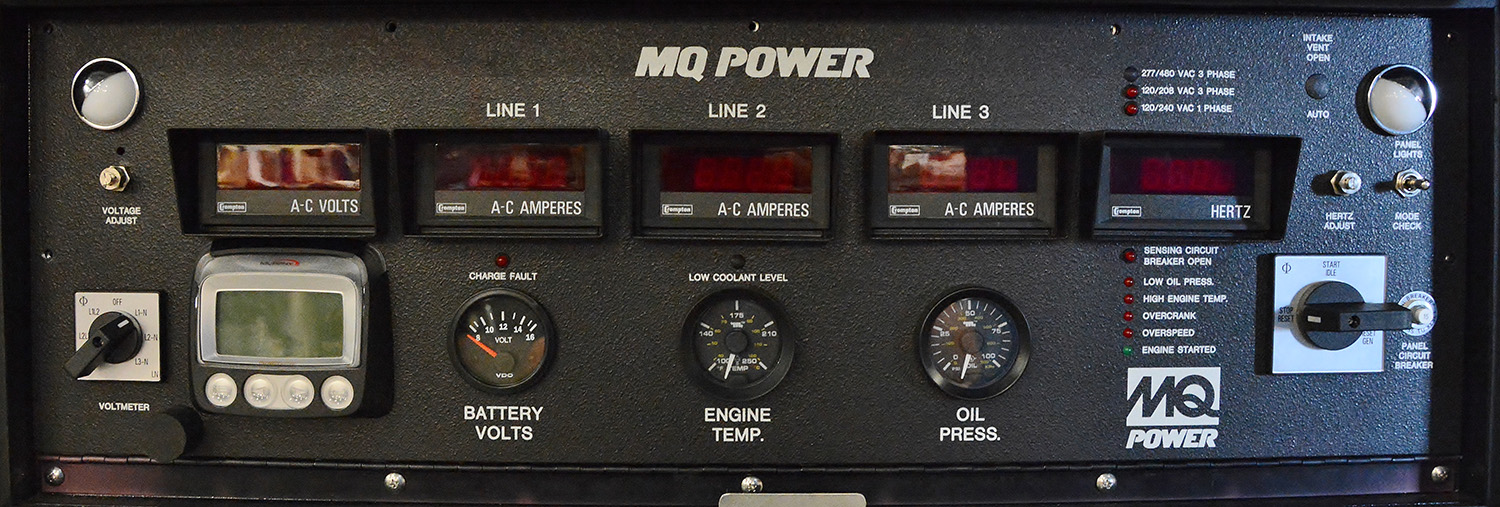

SG600C3 Control Panel
Control Panel

Product Literature

Studio Product Brochure
Studio Product Brochure

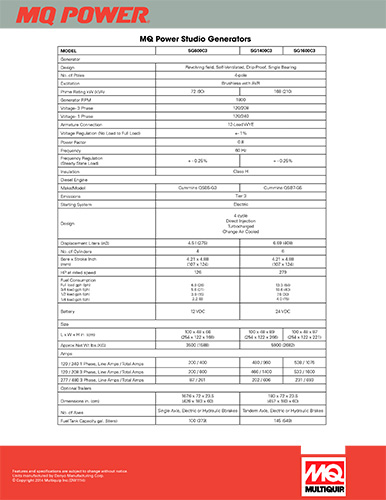

Studio Generators Spec Comparison Table
Studio Generators Spec Comparison Table
