1600 Amps

The technically-advanced, yet operator-friendly, SG1600C4F Studio Generator is designed specifically for the entertainment industry to reduce noise and increase reliability, while meeting EPA Tier 4 Final emissions requirements.

The unit features a microprocessor-based digital controller providing a color graphic display and remote monitoring capability for a truly state-of-the-art control package. The digital controller can optionally also remotely monitor and operate the generator through a simple wireless internet connection. A variable-speed hydraulic fan drive is used to allow the fan to spin slowly under smaller loads providing more efficient airflow while reducing noise. The Cummins™ engine is equipped with an isochronous electronic governor providing precise frequency control of ± 0.25 percent. The SG1600C4F is also built with an all-aluminum housing to eliminate excess weight.

Quick Links

Specification Highlights


Prime Rating: 1600 Amps (192 kW)
Marathon Alternator
Rotary Voltage Selector Switch
Main Line Circuit Breaker: 600A
Output Panel:
   CAM-LOK receptacles - 6 sets
   100A Bates connectors - 2 Sets
   15A Edison receptacles - 2 Sets
   Waterfall or Standard Output Panel


EPA Tier 4 Final Certified
Cummins Diesel Engine
Variable-Speed Hydraulic Fan
Custom Radiator & Multi-wing Fan for quiet operation


Sound-attenuated Aluminum Housing with rounded corners
Multi-layered Barrier Felt Insulation
Automatic Overhead Ventilation Doors


Parallel Operation Package
Exterior Lighting
Trailer Package
Custom Paint Colors
...and More!

Additional Photos

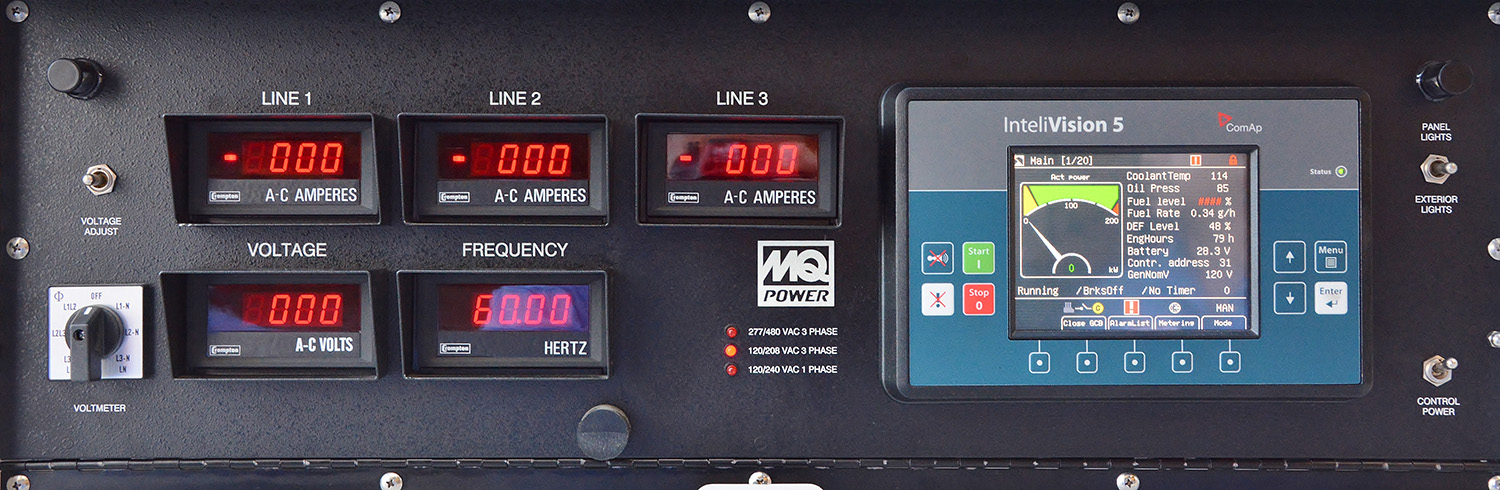

SG1600C4F Control Panel
Control Panel

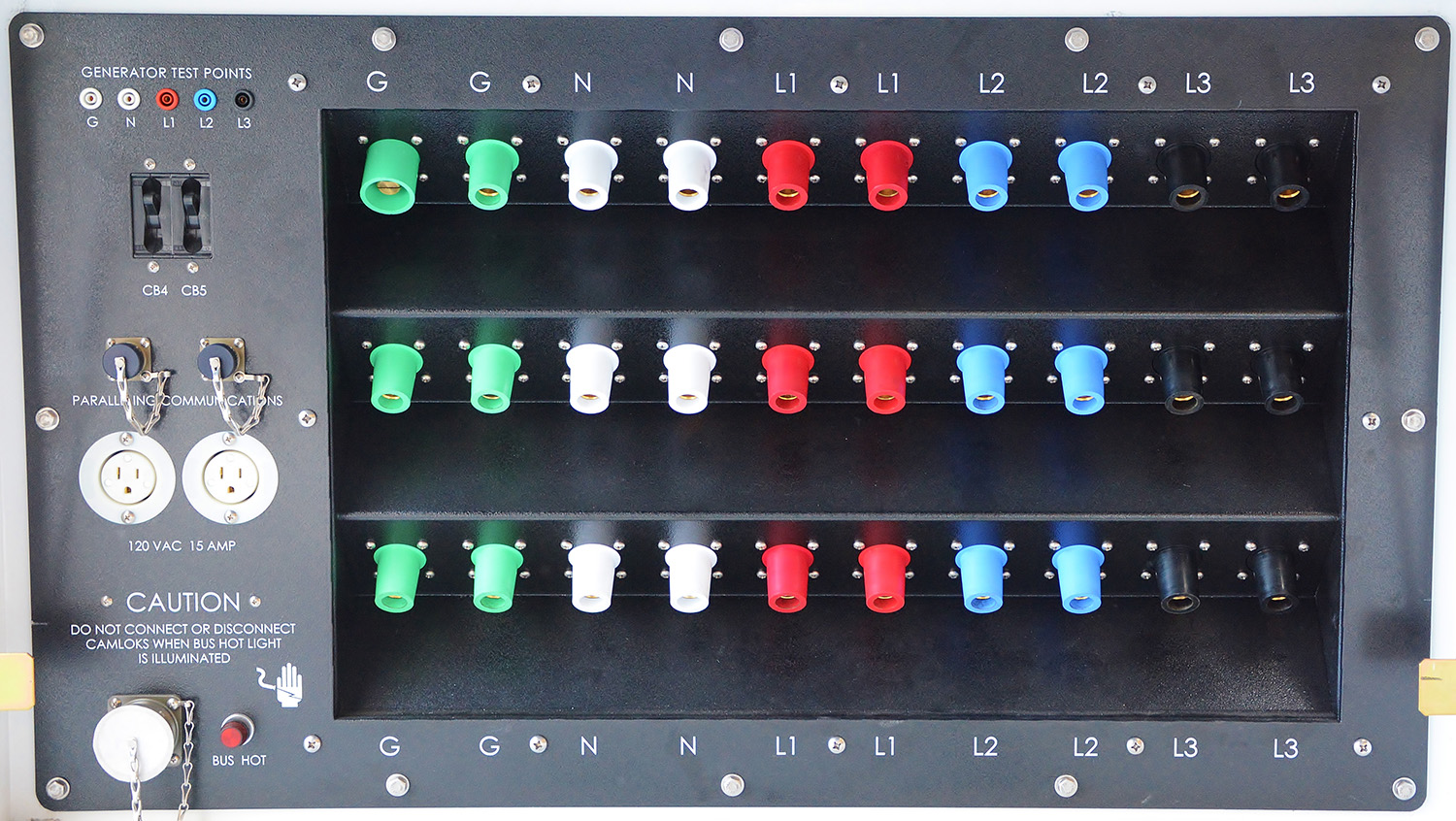

SG1600C4F Waterfall Receptacle Panel
Waterfall Receptacle Panel

Product Literature

Studio Product Brochure
Studio Product Brochure
Studio Generators Spec Comparison Table
Studio Generators Spec Comparison Table

Data Sheets

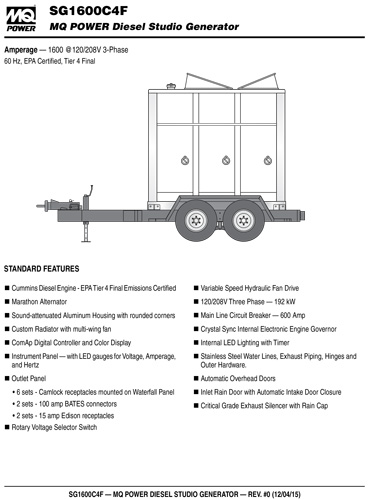

SG1600C4F Data Sheet
Data Sheet

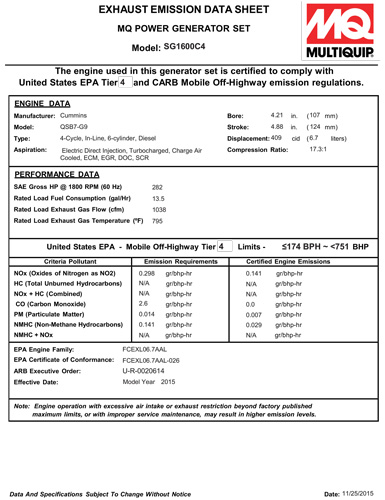

Emissions Data Sheet
Emissions Data Sheet

Outline Drawings

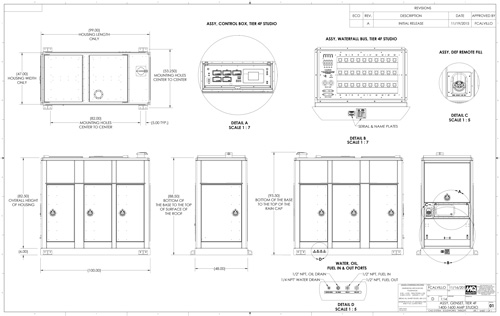

SG1600C4F Generator Outline
Generator Outline
