DCA70SSJU4F70kVA Prime Output

The DCA70SSJU4F offers a prime rating of 56 kW (70 kVA) and a standby rating of 62 kW (77 kVA)

Our patented open delta generator winding provides precise voltage control, allowing superior motor starting capability. An electronic governor maintains frequency to ± 0.25% from no load to full load. It features an auto start stop that allows the generator to start from a remote location.

The unit features a powder-coated / e-coated, weatherproof steel housing that allows a substantially low operating noise level of 66 dB(A). A comprehensive analog control panel provides instrumentation including AC ammeter, AC voltmeter, frequency meter, AC circuit breaker, engine gauges and much more.

Quick Links

Specification Highlights


Prime Rating — 56 kW (70 kVA)
Standby Rating — 62 kW (77) kVA
208, 220, 240, 416, 440, 460, 480V Switchable
± 0.25 Frequency Regulation
(No Load to Full Load)


John Deere / 4045HFG04
EPA Tier 4 Final Certified
Available with PowerBalance


65 dB(A) at 23 ft.
19.8 gal. (75 L) Fuel Tank Capacity
7.98 gal. (30 L) DEF Tank Capacity
TRLR75XF2 Trailer Available w/ 100 gal. (378.54 L) Fuel Capacity


Battery Charger
Trailer-mounted Package
Emergency Stop Switch
Sub-Base Fuel Cells
Cam-Lok Quick Disconnectors
...And More!

Product Literature

220-800 kVA Spec Comparison Sheet
7.5-150kVA Spec Comparison Sheet

Data Sheets

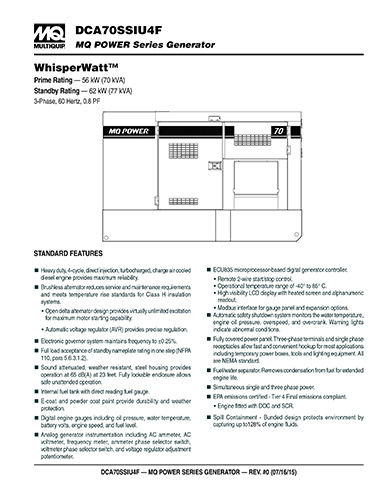

DCA70SSJU4F Data Sheet
Data Sheet

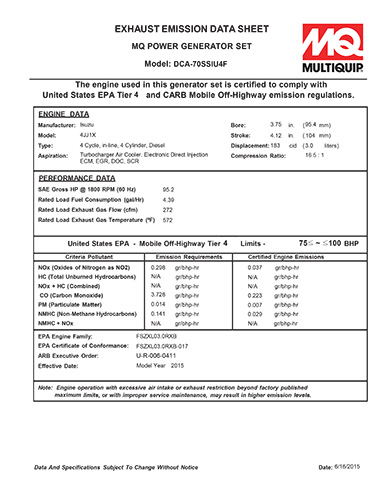

Emissions Data Sheet
Emissions Data Sheet

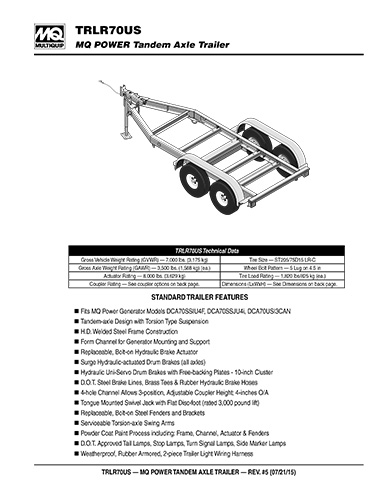

TRLR75XF2 Trailer Data Sheet
TRLR75XF2 Trailer Data Sheet
