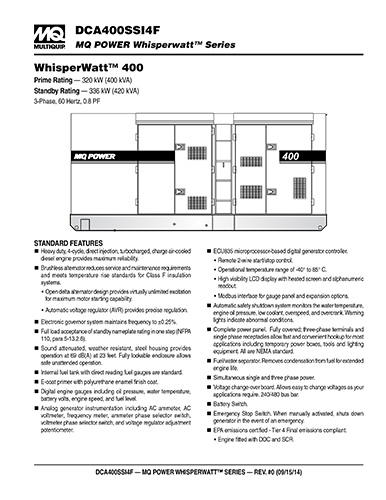

The DCA400SSI4F3 offers a prime rating of 320 kW (400 kVA) and a standby rating of 336 kW (420 kVA).
The DCA400SSI4F3 offers a prime rating of 320 kW (400 kVA) and a standby rating of 336 kW (420 kVA). Our patented open delta generator winding provides precise voltage control, allowing superior motor starting capability. An electronic governor maintains frequency to ±0.25% from no load to full load. Equipped with a Tier 4 Final Isuzu diesel engine to easily meet the stringent EPA standards while providing profitable performance and reliability. It features an auto start stop that allows the generator to start from a remote location.
The unit features an E-coat primer with polyurethane enamel finish, weatherproof steel housing that allows a substantially low operating noise level of 69 dB(A). A comprehensive analog control panel provides instrumentation including AC ammeter, AC voltmeter, frequency meter, AC circuit breaker, engine gauges and much more.
| Prime Rating — 320 KW (400 KVA) |
| Standby Rating — 336 KW (420 KVA) |
| Three-Phase, 208, 220, 240, 416, 440, 480V Reconnectable |
| ± 0.25 Frequency Regulation (No Load to Full Load) |
| Isuzu / BQ-6WG1X |

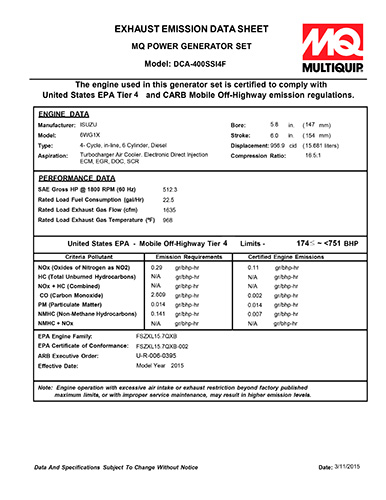

| EPA Tier 4 Final Certified |
| 69 dB(A) at 23 ft. |
| 55.5 gal. (210 L) Fuel Tank Capacity |
| 14.8 gal. (56 L) DEF Tank Capacity |
| TRLR400XF3 and TRLR400XF3 (HDA/EDA) Trailers Available |
| Battery Charger |
| Trailer-mounted Package |
| Emergency Stop Switch |
| Sub-Base Fuel Cells |
| Cam-Lok Quick Disconnectors |
| ...And More! |
