300 kVA Prime Output

The DCA300SSJU4F3 offers a prime rating of 240 kW (300 kVA) and a standby rating of 264 kW (330 kVA).

Our patented open delta generator winding provides precise voltage control, allowing superior motor starting capability. An electronic governor maintains frequency to ± 0.25% from no load to full load. Equipped with a Tier 4 certified John Deere diesel engine to easily meet the stringent EPA standards while providing profitable performance and reliability. It features an auto start stop that allows the generator to start from a remote location.

The unit features a powder-coated, weatherproof steel housing that allows a substantially low operating noise level of 72 dB(A). A comprehensive analog control panel provides instrumentation including AC ammeter, AC voltmeter, frequency meter, AC circuit breaker, engine gauges and much more.

Quick Links

Specification Highlights


Prime Rating — 240 KW (300 KVA)
Standby Rating — 264 KW (330 KVA)
Three-Phase, 60 Hz, 0.8 PF
± 0.25 Frequency Regulation
(No Load to Full Load)


John Deere / 6090HFG06
EPA Tier 4 Final Certified
Available with PowerBalance


72 dB(A) at 23 ft.
430.6 gal. (1630 L) Fuel Tank Capacity
29.7 gal. (112.4 L) DEF Tank Capacity
TRLR300EV Trailer Available


Battery Charger
Trailer-mounted Package
Emergency Stop Switch
Sub-Base Fuel Cells
Cam-Lok Quick Disconnectors
...And More!

Additional Photos

Trailer-Mounted (Rear)
Trailer-Mounted (Rear)

Product Literature

125-600 kVA Spec Comparison Sheet
125-600 kVA Spec Comparison Sheet

Data Sheets

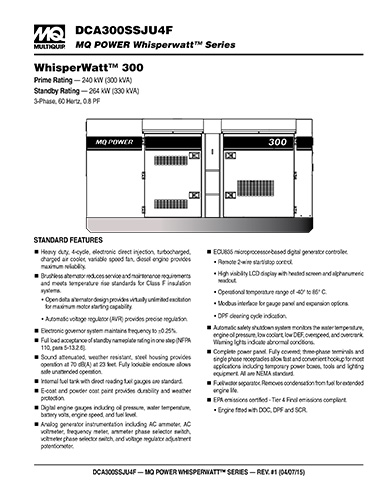

DCA300SSJU4F3 Data Sheet
Data Sheet
Emissions Data Sheet
Emissions Data Sheet
TRLR300EV Trailer Data Sheet
TRLR300EV Trailer Data Sheet

Contact Us

If you would like more information about MQ Power Generators, please fill out the form below or call us at 800-421-1244
